TY-706-150 / TY-707-50
TY-706-150 / TY-707-50
Continuous Motion Automatic High Speed Side Sealer
- Servo Motor control for ease operation and great packaging capacity.
- User friendly Touch Panel for setting multiple items, such as: sealing time, sealing jaw height, package speed…etc.
- Auto sense product to engage high speed package performance.
- Multiple memory programs to record/read different data.
- Auto warning with quick trouble shooting display.
- Continuous motion for sealing & cutting.
- Individual motor for auto film collection.
- Film filling tension adjustable by air shaft.
- Apply with Mitsubishi PLC controller.
- Individual pin roller, ease adjustment on pin position & amount.
- Apply Panasonic sensor for product entry reading.
- Temp. controller with PID function and driven by SSR for stable heating performance.
- Auto alarm warning on sealing device.
- CE model available.
- Customized design total package process is available upon request.

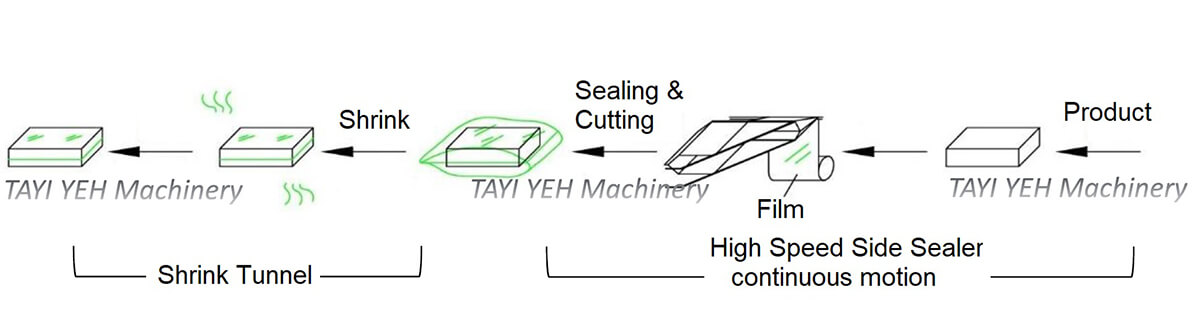

- For shrink purpose, please refer to shrink tunnel.
- 5-6kg/cm2 filter air is self-prepared by buyer.
| Model | TY-706-150 | TY-707-50 | |
|---|---|---|---|
| Machine(mm) L x W x H |
2930 x 1900 x 1530 | 4200 x 1720 x 1530 | |
| Package Range(mm) L x W x H |
L:120-800mm W:60-350mm H:5-150mm |
L:120-800mm W:60-330mm H:5-50mm |
|
| Speed | 30-80 pack/min | 30-100 pack/min | |
| Power | 220V/380V/415V (upon request) | ||
| Power consumption | 15KW | ||
| Optional Device: Air flush、stainless steel frame、sealing position adjustable…etc., other requirement available upon request. |
|||
| *Other package size available upon request. *One option on max. product L, W, and H while package. *Speed will be differ according to product shape, film, and operator. |
|||
Notebook, booklet, magazine, facial mask, electronics, container, paper roll, tissue box, …etc.
- Servo Motor control for ease operation and great packaging capacity.
- User friendly Touch Panel for setting multiple items, such as: sealing time, sealing jaw height, package speed…etc.
- Auto sense product to engage high speed package performance.
- Multiple memory programs to record/read different data.
- Auto warning with quick trouble shooting display.
- Continuous motion for sealing & cutting.
- Individual motor for auto film collection.
- Film filling tension adjustable by air shaft.
- Apply with Mitsubishi PLC controller.
- Individual pin roller, ease adjustment on pin position & amount.
- Apply Panasonic sensor for product entry reading.
- Temp. controller with PID function and driven by SSR for stable heating performance.
- Auto alarm warning on sealing device.
- CE model available.
- Customized design total package process is available upon request.
- For shrink purpose, please refer to shrink tunnel.
- 5-6kg/cm2 filter air is self-prepared by buyer.
