TY-701-300H
TY-701-300H
Automatic L Sealer
- Efficient packaging, user friendly operation.
- Wide packaging application in various industries.
- Adjustable product entry width & height directly without hand tool.
- Suitable for product height 120-300mm.
- Sealing set height adjustable.
- Product entry height controlled by individual motor.
- Quick adjustment on product entry width.
- Stable & efficient operation by Mitsubishi PLC controller.
- Apply Omron timer for good control on sealing & cutting time.
- Adjustable Film feeding tension.
- Individual pin roller, pin position & amount adjustable according to request.
- Panasonic sensor for product entry reading.
- Cutting blade made by 1 pc for long time operation durability.
- Temp. controller with PID function.
- Stable heating performance by SSR.
- Abnormal warning on sealing & cutting set.
- Auto scrap film collection device.
- Film holding by rubber roller enhance stable pulling process.
- Customized machine with total packaging solution is available upon request.
- CE model available

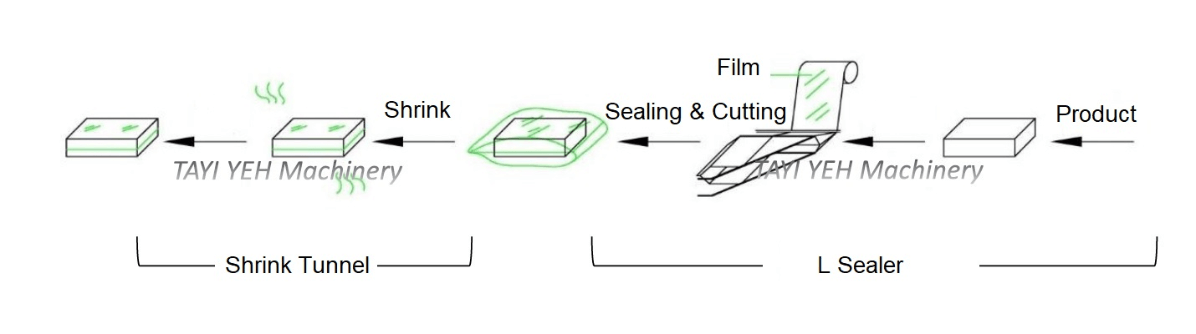

- Please refer shrink tunnel according to product size for shrinking application.
- 5-6kg/cm2 filter air is self-prepared by buyer.
| Model | TY-700-300H | ||
|---|---|---|---|
| Machine (mm) L x W x H |
3030 x 1740 x 1650mm | ||
| Package Range(mm) L x W x H |
L:250-600mm W:200-400mm H:120-300mm |
||
| Speed | 1-15 packs/min | ||
| Air consumption | 230L/min | ||
| Power | 220V/60Hz/1 phase (upon request) | ||
| Power consumption | 2.6KW | ||
| Optional Device/Function: Anti-cut function、3 in 1 blade(for PE film)、Stainless steel frame…etc., other requirement available upon request. |
|||
| *Other packaging size available upon request. *the speed will be differ from product size, film thickness & operator. *one option on max. product length, width or height while packaging. |
|||
Box, container, shampoo, conditioner, book、magazine, notebook, toys, t kitchenware, bio-technology products, tray, chemicals, bottle, can, soda, gift box, electronics, grocery, paper roll, tissue, wire, metal parts…etc.
- Suitable for product height 120-300mm.
- Sealing set height adjustable.
- Product entry height controlled by individual motor.
- Quick adjustment on product entry width.
- Stable & efficient operation by Mitsubishi PLC controller.
- Apply Omron timer for good control on sealing & cutting time.
- Adjustable Film feeding tension.
- Individual pin roller, pin position & amount adjustable according to request.
- Panasonic sensor for product entry reading.
- Cutting blade made by 1 pc for long time operation durability.
- Temp. controller with PID function.
- Stable heating performance by SSR.
- Abnormal warning on sealing & cutting set.
- Auto scrap film collection device.
- Film holding by rubber roller enhance stable pulling process.
- Customized machine with total packaging solution is available upon request.
- CE model available
- Please refer shrink tunnel according to product size for shrinking application.
- 5-6kg/cm2 filter air is self-prepared by buyer.
