L bar Sealer, Closing Conveyor
The TY-7008-S / TY-7112-S is an automatic L bar sealer designed for efficient film wrapping, sealing and product transfer. The “S” designation refers to the closing conveyor configuration, featuring an extendable outfeed conveyor that can be turned on or off according to packaging requirements.

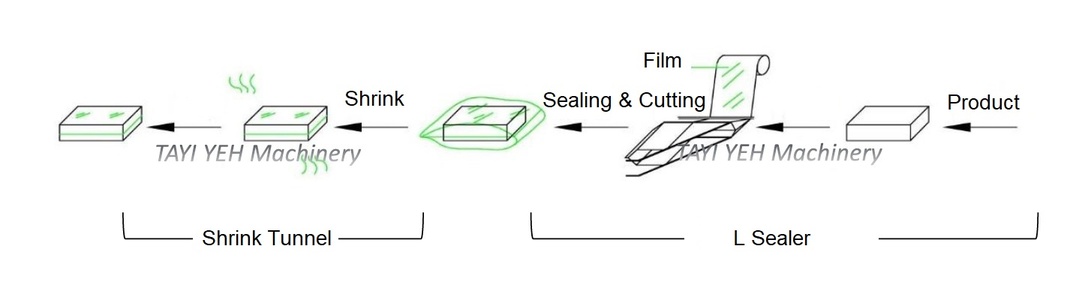

With the closing function enabled, this L bar sealer machine can handle products from 30 mm in length, making it suitable for smaller products and flexible packaging-line applications. Designed and manufactured by Tayi Yeh, the TY-7008-S and TY-7112-S are available in two package ranges and can be integrated with a suitable shrink tunnel for a complete shrink packaging process.
Find the Right L Bar Sealer Machine for Your Packaging Line
The TY-7008-S and TY-7112-S are designed for different product dimensions and packaging requirements. Tayi Yeh can help evaluate your package size, film requirements, optional functions and production-line configuration. Contact us to confirm the suitable automatic L bar sealer for your application.
- Outfeed belt has closing function(belt extended).
- Enable to pack product from 30mm in length.
- Apply Mitsubishi PLC controller for stable operation performance.
- Apply Omron timer for control sealing & cutting time.
- Individual pin roller, enable to adjust pin position & amounts according to request.
- Adjustable film filling tension.
- Product entry height and width are adjustable directly without hand tool.
- Panasonic sensors for product entry reading.
- Temp. controller with PID function and driven by SSR for stable heating performance.
- Auto abnormal warning on sealing & cutting device.
- Infeed conveyor apply with roller enhance smooth operation.
- Rubber roller for tight film holding with timing belt pulling.
- Film collection device can be easily install / dismantle without hand tool.
- Customized machine with product delivery, stacking, and sealing to cutting is available upon request.
- CE model available
- Please refer shrink tunnel according to product size for shrinking application.
- 5-6kg/cm2 filter air is self-prepared by buyer.
| Model | TY-7008S | TY-7112S |
|---|---|---|
| Machine(mm) L x W x H | 1600 x 810 x 1550 | 2100 x 930 x 1580 |
| Package Range(mm) L x W x H | L:30-300mm W:40-250mm H:5-80mm |
L:30-500mm W:60-330mm H:5-120mm |
| Speed | 1-25 packs/min | |
| Air consumption | 120L/min | |
| Power supply | 220V/60Hz/1 phase(upon request) | |
| Power consumption | 2.2KW | 2.6KW |
| Optional Device/Function: anti-cut protection、3 in 1 blade(for PE film)、adjustable sealing height、sealing line position、S/S machine frame…etc., other requirement available upon request. |
||
| *Other packaging size available upon request. *The speed will be differ from product size, film thickness & operator. *One option on max. product length, width or height while packaging. |
||
The TY-7008-S / TY-7112-S automatic L bar sealer is designed for individual or grouped products that require consistent film sealing and smooth transfer to the next packaging stage. Its closing conveyor provides additional support for short and compact products, making the L bar sealer machine suitable for a wide range of packaging applications.
- Pharmaceutical & Health Care
Medicine boxes, supplement cartons, healthcare product sets and other compact packages can be individually wrapped or grouped in film for product protection and distribution. - Cosmetic & Skincare
Cosmetic boxes, skincare sets, soap packages and promotional beauty kits can be sealed as individual products or multi-item sets for retail presentation. - Food & Beverage
Boxed foods, confectionery products, tea packages, snack packs and other sealed food products can be wrapped for display, protection or multipack sales. - Book, Paper & Stationery
Books, notebooks, greeting cards, paper products and stationery sets can be film-wrapped to help protect their surfaces during display, storage and shipment. - Metal & Industrial Supplies
Small hardware sets, boxed components, replacement parts and packaged industrial accessories can be sealed to keep grouped contents together during handling. - Electronic Supplies
Electronic accessory boxes, cables, adapters, small components and bundled device accessories can be wrapped as individual or promotional packages. - Homeware & Others
Soap, sponges, household accessories, daily-use products and compact retail sets can be packaged with the L bar sealer for cleaner presentation and easier distribution.
Product suitability depends on the item dimensions, shape, film type and required package arrangement. A compatible shrink tunnel can be connected after the L bar sealer when a fully shrunk film finish is required.
- Outfeed belt has closing function(belt extended).
- Enable to pack product from 30mm in length.
- Apply Mitsubishi PLC controller for stable operation performance.
- Apply Omron timer for control sealing & cutting time.
- Individual pin roller, enable to adjust pin position & amounts according to request.
- Adjustable film filling tension.
- Product entry height and width are adjustable directly without hand tool.
- Panasonic sensors for product entry reading.
- Temp. controller with PID function and driven by SSR for stable heating performance.
- Auto abnormal warning on sealing & cutting device.
- Infeed conveyor apply with roller enhance smooth operation.
- Rubber roller for tight film holding with timing belt pulling.
- Film collection device can be easily install / dismantle without hand tool.
- Customized machine with product delivery, stacking, and sealing to cutting is available upon request.
- CE model available
- Please refer shrink tunnel according to product size for shrinking application.
- 5-6kg/cm2 filter air is self-prepared by buyer.
