Servo Type Continuous Motion Automatic Sleeve Wrapper
- Suitable for box, case, products with tray, such as: can、tin、bottle、tetra pak…etc., bundler package.
- Continuous motion with servo motor control for accurate package performance.
- Touch Panel for setting multiple items, such as: sealing temp., counter, speed, cutting position, bag length…etc., user friendly operation.
- Quick trouble shooting display for ease adjustment.

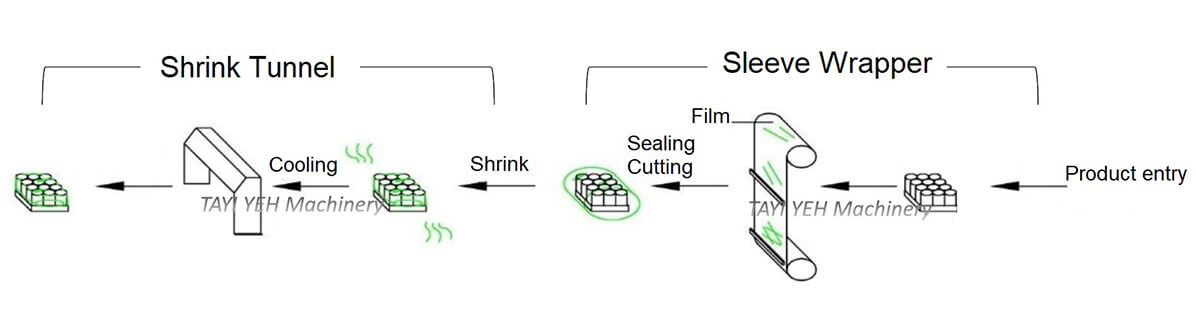

- Package process: product → conveyor delivery →continuous motion sealing & cutting→ conveyor delivery out.
- Film filling tension adjustable by air shaft.
- Apply Mitsubishi PLC controller with stable operation performance.
- Build with film replacing device, operator can easily change the film.
- Attach air flush to cool sealing in a short time for tight sealing strength.
- Equip with product entry sensor for smooth packaging process.
- Temp. controller with PID function and driven by SSR for stable heating performance.
- One piece forming blade for good operation stability.
- Abnormal warning/stop on sealing & cutting device.
- Outfeed conveyor auto delivery product after wrapping.
- Customized machine with package process design is available upon request.
- Please refer shrink tunnel according to product size for shrinking application.
- 5-6kg/cm2 filter is provided by buyer.
| Model | TY-136 | ||
|---|---|---|---|
| Machine | 3850 x 2000 x 1730mm(L x W x H) | ||
| Package size | Customized according to request. | ||
| Film | PE | ||
| Speed | 1-40 pack /min | ||
| Power | 220V/380V/415V(upon request) | ||
| Power consumption | 16KW | ||
| *Package speed will be differ from product size, film and operator. | |||
Box, case, carton, bundler package with tray, such as: alcohol drinks、food、soda、water、can、bottle、glass、milk、healthy drinks、PET bottle、tetra …etc., or other related products.
- Suitable for box, case, products with tray, such as: can、tin、bottle、tetra pak…etc., bundler package.
- Continuous motion with servo motor control for accurate package performance.
- Touch Panel for setting multiple items, such as: sealing temp., counter, speed, cutting position, bag length…etc., user friendly operation.
- Quick trouble shooting display for ease adjustment.
- Package process: product → conveyor delivery →continuous motion sealing & cutting→ conveyor delivery out.
- Film filling tension adjustable by air shaft.
- Apply Mitsubishi PLC controller with stable operation performance.
- Build with film replacing device, operator can easily change the film.
- Attach air flush to cool sealing in a short time for tight sealing strength.
- Equip with product entry sensor for smooth packaging process.
- Temp. controller with PID function and driven by SSR for stable heating performance.
- One piece forming blade for good operation stability.
- Abnormal warning/stop on sealing & cutting device.
- Outfeed conveyor auto delivery product after wrapping.
- Customized machine with package process design is available upon request.
- Please refer shrink tunnel according to product size for shrinking application.
- 5-6kg/cm2 filter is provided by buyer.
