SA-317 PE / SA-318 PE / SA-319 PE / SA-321 PE
SA-317 PE / SA-318 PE / SA-319 PE / SA-321 PE
Shrink Wrap Tunnels 、Shrink Wrapping Machine Manufacturers
The PE film shrink warp tunnels are used for many products such as: drinks, beverage, household items, industrial items…etc. The most key factor of shrink wrapping machine manufactures is to.

- Apply with sleeve wrapper, suitable for PE film.

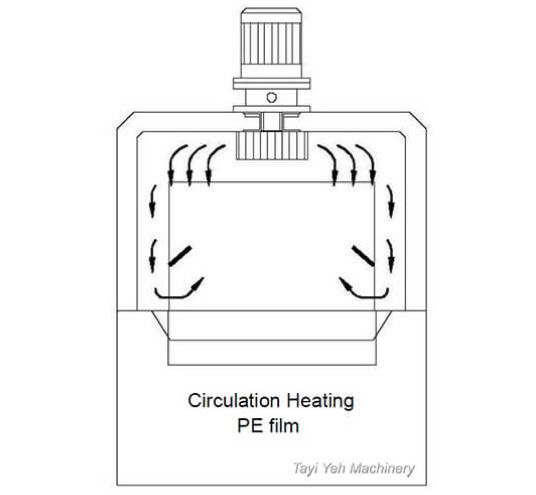

- Heat circulation for evenly shrinking performance.
- Fiber tube on conveyor shaft with long time operation durability.
- Adjustable fan direction at 2 sides.
- Adjustable operation speed & shrinking temperature.
- Stable shrinking performance with constant temp. control system.
- Inner tunnel related heating parts are mainly made by stainless steel.
- Cooling fan in the rare of tunnel.
- Machine frame made by steel with powder painting.
Model | SA-317 PE | SA-318 PE | SA-319 PE | SA-321 PE | |
---|---|---|---|---|---|
Machine (L x W x H) |
2800 x 960 x 1700mm | 2800 x 1060 x 1800mm | 2800 x 1160 x 1800mm | 3600 x 1440 x 1900mm | |
Chamber (L x W x H) |
1500 x 500 x 350mm | 1500 x 600 x 450mm | 1500 x 700 x 450mm | 2000 x 900 x 500mm | |
Max. product size (W x H) |
350 x 250mm | 420 x 350mm | 490 x 350mm | 630 x 400mm | |
Power consumption | 26KW | 28KW | 33KW | 48KW | |
Power | 3P 220V / 3P 380V / 3P 380V 4W (upon request) | ||||
Speed | 0-8 M/min. | ||||
Optional Device: intensive shaft、stainless steel frame、roller conveyor、auto stop(by timer)…etc., other requirement available upon request. |
|||||
*Other package size available upon request. |
- Apply with sleeve wrapper, suitable for PE film.
- Heat circulation for evenly shrinking performance.
- Fiber tube on conveyor shaft with long time operation durability.
- Adjustable fan direction at 2 sides.
- Adjustable operation speed & shrinking temperature.
- Stable shrinking performance with constant temp. control system.
- Inner tunnel related heating parts are mainly made by stainless steel.
- Cooling fan in the rare of tunnel.
- Machine frame made by steel with powder painting.
