Heat Shrink Tunnel for POF Film
Heat Shrink Tunnel Manufacturers

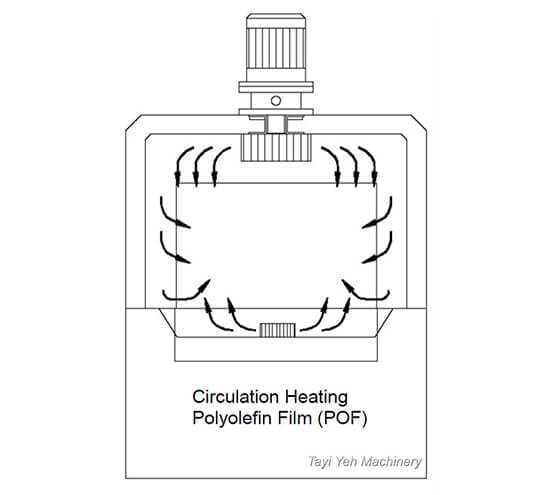

The tunnel for POF film is circulation heating system to well perform nice shrinking. Tunnel chamber length can be made starting from minimum 800mm to customized by product sizes and well suit in variety industries. As the leading brand of heat shrink tunnel manufacturers in Taiwan, Tayi Yeh’s shrink tunnel is the great choice to boost productivity and bring up the added value.
- Suitable for Polyolefin(POF) film.
- Heat circulation for evenly shrinking performance.
- Fiber tube on conveyor shaft with long time operation durability.
- Adjustable operation speed & shrinking temperature.
- Stable shrinking performance with constant temp. control system.
- Inner tunnel related heating parts are mainly made by stainless steel.
- Machine frame made by steel with powder painting.
- CE Model available.
| Model | SA-313 POF | SA-316 POF | SA-317 POF | SA-318 POF | SA-319 POF |
|---|---|---|---|---|---|
| Machine (L x W x H) |
1265 x 720 x 1220mm | 1865 x 720 x 1450mm | 1865 x 820 x 1500mm | 1865 x 880 x 1650mm | 2400 x 1060 x 1690mm |
| Chamber (L x W x H) |
800 x 400 x 200mm | 1200 x 400 x 250mm | 1200 x 500 x 300mm | 1200 x 600 x 350mm | 1500 x 700 x 400mm |
| Max. product size (W x H) |
300 x 130mm | 300 x 170mm | 390 x 220mm | 470 x 260mm | 550 x 300mm |
| Power Consumption | 9KW | 14KW | 19KW | 21KW | 24KW |
| Power | 3P 220V / 3P 380V / 3P 380V 4W (upon request) | ||||
| Speed | 0-7 M/min | 0-8 M/min | |||
| Optional Device: intensive shaft、stainless steel frame、roller conveyor、auto stop(by timer), visual window…etc., other requirement available upon request. |
|||||
| *Other package size available upon request. | |||||
Cosmetics, shampoo, conditioner, book, magazine, notebook, toys, tape, kitchenware, tooth paste, bio-technology products, tray, box, chemicals, bottle, can, tin, jar, soda, gift box, electronics, grocery, paper roll, tissue, wire, metal parts, container…etc.
- Suitable for Polyolefin(POF) film.
- Heat circulation for evenly shrinking performance.
- Fiber tube on conveyor shaft with long time operation durability.
- Adjustable operation speed & shrinking temperature.
- Stable shrinking performance with constant temp. control system.
- Inner tunnel related heating parts are mainly made by stainless steel.
- Machine frame made by steel with powder painting.
- CE Model available.
