Automatic Sleeve Wrapper - For Bottles, Bundle Package
Tayi Yeh SA-116 is a water bottle shrink wrapping machine designed to automatically align, group, sleeve-wrap, seal and shrink bottles into stable multipacks. Its 90-degree infeed system uses a cylinder and product sensor to position each bundle accurately before the wrapping process begins.
Combining sealing and shrinking functions in one system, the SA-116 completes product alignment, PE film wrapping, sealing, cutting and heat shrinking through a continuous packaging process. This PET bottle wrapping machine is suitable for bottled water, beverages, cans, milk, health drinks and other regularly shaped containers that require efficient bundle packaging.
Find the Right Water Bottle Shrink Wrapping Machine for Your Packaging Line
The SA-116 can be evaluated according to your bottle dimensions, bundle quantity, PE film requirements and production-line configuration. Its automatic product alignment and integrated sealing and shrinking process make it a practical solution for water, beverage and PET bottle multipack applications.
Tayi Yeh can help review your product size, required output, bundle arrangement, factory voltage and compressed-air conditions. Contact us to confirm whether the SA-116 PET bottle wrapping machine is suitable for your packaging requirements.
- Suitable for round shape products, such as: can、tin、bottle、tetra pak…etc.,
- Machine combine seal & shrink functions for completed package.
- Infeed conveyor auto align products for package.
- 90° Infeed apply with cylinder and sensor for accurate product package position.

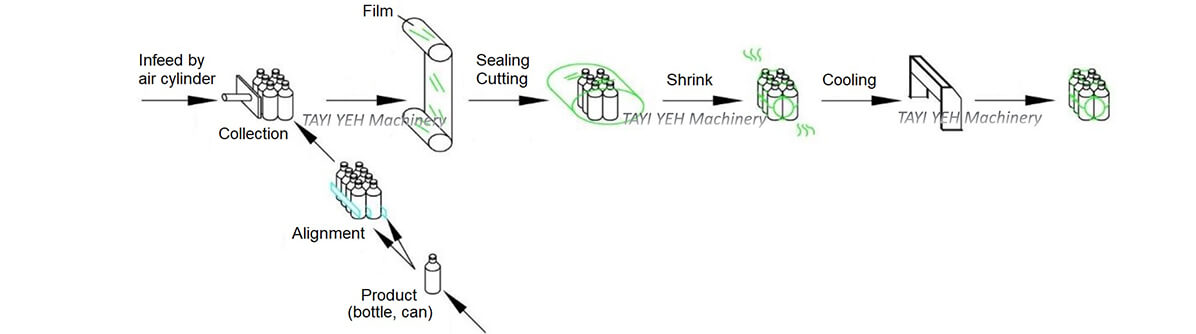

- Package process: product alignment →film wrapping → sealing & cutting → outfeed conveyor → shrink tunnel → package completed.
- Conveyor with guiding plates at 2 sides for product entry.
- Product is fixed by plate while sealing & cutting without movement.
- Attach air flush to cool sealing in a short time for good strength.
- Equip with product entry sensor for smooth packaging process.
- Apply Mitsubishi PLC controller for stable operation performance.
- Sealing & cutting time adjustable through Omron timer.
- Temp. controller with PID function and driven by SSR for stable heating performance.
- Cutting blade made by 1piece for long time operation durability.
- Auto alarm warning on sealing & cutting.
- Outfeed conveyor auto delivery product into shrink tunnel after wrapping.
- Shrink temp. & speed adjustable.
- Shrink tunnel equips fan to cooling shrink temp. in a short time.
- Inner tunnel related heating parts are mainly made by stainless steel.
- Customized machine with package processing design is available upon request.
- 5-6kg/cm2 filter air is provided by buyer.
| Model | SA-116 | ||
|---|---|---|---|
| Package mode | 90°infeed by air cylinder | ||
| Machine | L 3850 x W 2500 x H 1900mm | ||
| Package Range | L 360 x W 240 x H 180mm | ||
| Conveyor | L:2460mm W:differ by product. | ||
| Film Material | PE | ||
| Speed | 1-14 pack /min. | ||
| Power | 220V/380V/415V(upon request) | ||
| Power Consumption | 24KW | ||
| Air Consumption | 460L/min | ||
| *Speed will be differ from product size, film material, and operators. | |||
The SA-116 PET bottle wrapping machine is designed for bottles, cans and other regularly shaped containers that can be automatically aligned into the required bundle configuration. It is particularly suitable for the following food and beverage packaging applications:
- Bottled Water Multipacks
PET water bottles can be automatically aligned into the required quantity and wrapped together with PE film, creating stable multipacks for palletizing, warehouse storage and distribution. - Soft Drinks and Carbonated Beverages
PET bottles, glass bottles or beverage cans can be grouped and shrink-wrapped into consistent bundle formats for retail, wholesale and transport packaging. - Milk and Health Drinks
Bottled milk, nutritional drinks and health beverages can be arranged into multipacks and enclosed in shrink film for easier handling throughout the distribution process. - Alcoholic Beverage Packaging
Beer cans, beverage bottles and other alcoholic drink containers can be bundled in PE film to maintain the required product arrangement during handling and shipment. - Canned Food and Beverage Products
Cans and tins can be automatically aligned and wrapped into compact bundles for warehouse handling, pallet loading and downstream logistics. - Tetra Pak Beverage Packs
Milk, juice, tea and other Tetra Pak cartons can be grouped into the required pack format before sleeve wrapping, sealing and shrinking. - Retail and Promotional Beverage Packs
Bottles or cans can be arranged into promotional quantities and wrapped as multi-unit packages for retail campaigns, wholesale distribution or seasonal sales.
Product suitability depends on the container dimensions, shape, bundle arrangement, film material and required production speed. Customized package-processing designs are available for applications that require a specific product count or line configuration.
